What is LED Lighting: Definition, Working Principle and Components

Think about how many lights you use every day, at home, at work, even while driving. Now imagine if every one of those lights used far less electricity, stayed cool, and lasted for years. That’s exactly what LED lighting brings to the table. Using light emitting diodes, these lights turn most of their energy into visible light instead of wasting it as heat, unlike traditional incandescent bulbs that burn through power and produce more heat than light.

The real game-changer came in the 1990s with blue LEDs, which finally made bright white light possible for general use. That’s when LEDs moved beyond simple signal lights and started lighting up homes, offices, factories, and city streets. But while LEDs are incredibly efficient, not every product delivers the same quality. Factors like heat sinks, circuit boards, and drivers play a huge role in how reliable and long-lasting your LED lighting will be.

In this article, we’ll break down how LED lighting works, why it’s so efficient, and what you need to know to pick the right option for your space.

What is LED Lighting?

LED lighting refers to the use of a light emitting diode as a source of illumination. Unlike traditional incandescent bulbs or fluorescent lamps, an LED is a semiconductor device that emits light when electrical current passes through it in the forward direction. This process, known as electroluminescence, occurs when electrons recombine with holes at the junction of two electrodes, typically an n-type and a p-type semiconductor layer.

LED lighting products are classified as solid state lighting, meaning they have no moving parts or fragile filaments. One major advantage is their directional nature. LEDs emit light in only one direction, allowing you to focus the light exactly where it’s needed, unlike incandescent lamps that radiate in all directions and require reflectors to manage beam spread.

The performance of LED lamps is not just about brightness or initial cost. It depends heavily on how well the system is designed to manage heat and electrical properties. Heat generated at the p-n junction is transferred into a heat sink to maintain stability. Without effective thermal management, the device’s lifespan and light output will degrade quickly. In contrast to incandescent and CFL bulbs that often fail suddenly, LED light bulbs are rated by gradual lumen depreciation, typically reaching L70 values between 50,000 and 100,000 hours.

LED lighting offers up to 90 percent energy savings compared to traditional incandescent light. In tunnel retrofits, for example, replacing older fixtures with LED luminaires has achieved up to 63 percent reductions in electrical energy use, supporting both economic and environmental goals.

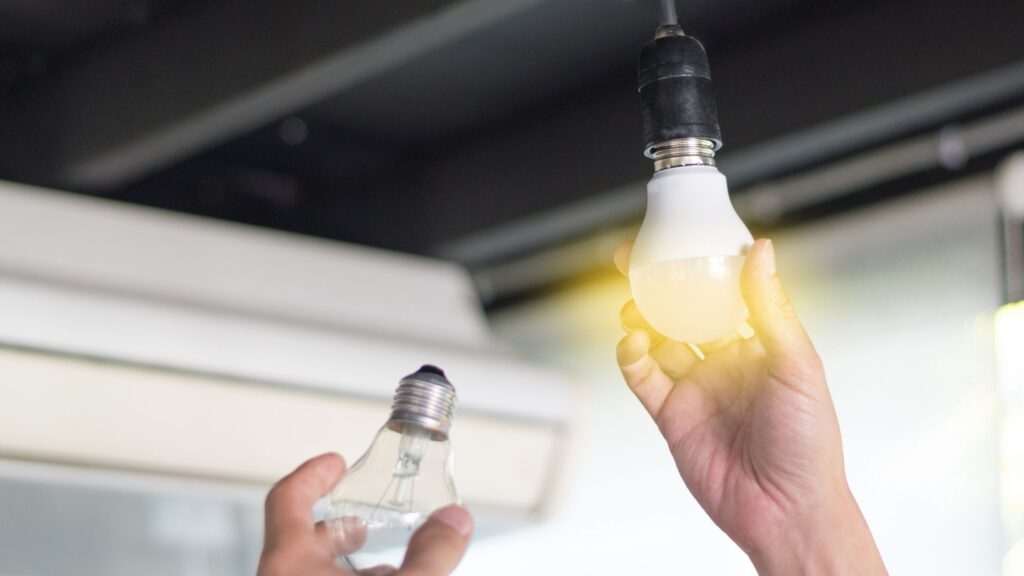

What is the Difference between a LED Light and a Regular Light?

The most noticeable difference between LED light and regular incandescent or compact fluorescent lighting lies in how the light is produced and distributed. LED lights emit light in a specific direction, which improves light distribution and reduces the need for reflectors and diffusers. In contrast, traditional light bulbs emit light in all directions, which often results in optical loss and lower efficiency.

Incandescent bulbs convert approximately 90 percent of their input energy into heat rather than visible light. LEDs, on the other hand, are energy efficient, converting most of the electrical energy into visible photons. This results in high efficacy, commonly reaching 100 to 200 lumens per watt, compared to about 15 lumens per watt for incandescent light.

LEDs offer another key advantage: they fade gradually over time instead of failing suddenly. Incandescent filaments tend to burn out catastrophically, and fluorescent lighting contains mercury, suffers in cold temperatures, and often requires warm-up. In contrast, LED lamps are mercury-free, start instantly, and perform reliably, even in freezers or outdoor environments.

History of the LED Lights

The history of LED lighting began more than a century ago and is shaped by pivotal discoveries in physics and material science. The earliest milestone dates back to 1907, when British experimenter H. J. Round observed electroluminescence in silicon carbide. Although he didn’t create a practical light source, his discovery laid the foundation for what would later become known as the light emitting diode.

It wasn’t until 1962 that Nick Holonyak Jr., working at General Electric, developed the first visible red LED. Unlike incandescent bulbs, this device used a semiconductor junction to emit light directly when electricity flowed through it. Holonyak’s invention marked the first real step toward using LED technology for general illumination.

During the 1970s and 1980s, gallium-based materials allowed the creation of amber and green LEDs, which gained popularity in indicator lights and signal applications. These early LED products were monochromatic and limited in brightness, but their efficiency and durability were already evident compared to traditional light bulbs.

The breakthrough came in 1994 when Shuji Nakamura engineered high-brightness blue LEDs. This innovation enabled the combination of blue light with phosphor materials to produce white light—an essential leap forward in lighting applications. This technology laid the groundwork for white LEDs, which now dominate many lighting markets, from household LED light bulbs to industrial luminaires.

By the 2000s, LED lighting products exceeded 100 lumens per watt in efficacy. In the 2010s, prices dropped dramatically, and LEDs started replacing incandescent and compact fluorescent lamps across homes and businesses. Today, chip-scale packages and tunable-white LED types support smart, connected lighting systems used in many lighting applications, from street lighting to commercial interiors, while offering unmatched energy efficiency, long life, and minimal maintenance costs.

When Did LED Lights Become Popular?

LED lights became mainstream in the early-to-mid 2010s, with a clear inflection point between 2014 and 2016. This is when the price of a standard LED light bulb dropped below five dollars, making it competitive with compact fluorescent and incandescent light bulbs in the residential market.

The U.S. Department of Energy reports that LED penetration in general-service lighting rose from just 3 percent in 2013 to 47 percent by 2022. That rapid shift was driven by reduced initial cost, rising energy savings, and the availability of high-quality, efficient products. As prices fell and technology matured, LED lighting products became a default choice for both homeowners and facility managers looking to reduce electricity use, improve light quality, and extend the useful life of their lighting systems.

How Do LED Lights Work?

LED lighting works through a process called electroluminescence, where a light emitting diode produces visible light when electrical current passes through it. Inside every LED is a p-n junction, a boundary formed by joining two types of semiconductor material. The n-type layer contains electrons, while the p-type layer contains positively charged holes. When a voltage is applied, electrons move across the junction and recombine with holes, releasing energy in the form of photons. The wavelength of the emitted light, and therefore its color, depends on the band-gap energy of the materials used.

For red light, the forward voltage is typically around 2 volts. For blue LEDs, the voltage rises to 3–4 volts. To power multiple LEDs efficiently, they’re often wired in series and connected to an LED driver designed to match the voltage supplied.

Not all the electrical energy becomes light. In fact, only about 40 to 60 percent is converted to useful light output. The rest turns into heat, which must be managed carefully using a heat sink to ensure long life and stable performance. Poor thermal management shortens the useful life and reduces brightness over time.

To produce white light, manufacturers coat blue LEDs with a layer of phosphor material. This coating converts some of the blue light into yellow and mixes it with the remaining blue to produce broad-spectrum white light.

What are the Components of an LED Light?

To understand how LED lights work in practical settings, it’s important to look at the structure of a complete LED lighting product. Each component plays a specific role in ensuring stable performance, proper heat dissipation, and reliable light output over time.

Here’s a breakdown of the core components you’ll typically find in a modern LED light:

• LED chip or die: The actual light source, made from semiconductor layers that emit light when energized. These chips can be mid-power (0.1 to 0.9 watts), high power (1 to 5 watts), or part of larger chip-on-board (COB) arrays that offer high brightness in compact formats.
• Heat sink: A thermal conductor, usually extruded or cast aluminum, designed to remove excess heat from the LED chip. As a rule of thumb, you’ll need about 3 square centimeters of fin area per watt for passive cooling in most solid state lighting designs.
• Driver and circuit board: The power regulation system that maintains constant current to the LED chips. Many LED drivers also include power factor correction (typically > 0.9) and total harmonic distortion control (< 20%) to comply with energy standards and reduce flicker. This driver is mounted on a printed circuit board.
• Housing: The external shell that protects internal components. In high quality LED lighting products, this is usually made from thermally conductive materials to support the heat sink and preserve overall structural integrity.
• Base: The connector that fits into a fixture. It may be an Edison screw (E26 or E27), a GU10 bayonet, or a two-pin design. The base allows retrofitting into existing fixtures while enabling electrical connection.
• Lens or optics: These shape and distribute the light. Depending on the application, the optic may be a total internal reflection lens, a reflector, or a frosted diffuser. These elements control the viewing angle, commonly 25, 60, or 120 degrees, and reduce glare in directional light sources.

How Do LEDs Produce White Light?

LEDs can produce white light using a few different techniques, but the most common and efficient method is phosphor conversion. This process starts with a high-brightness blue LED, typically emitting light around 450 nanometers. A layer of phosphor material, usually a YAG (yttrium aluminum garnet) or a custom multi-phosphor blend, is applied directly over the blue LED chip. This phosphor coating absorbs part of the blue light and re-emits it at longer wavelengths, such as yellow and red. The mix of unconverted blue and converted yellow produces light that appears white to the human eye.

Phosphor conversion allows for a wide range of correlated color temperatures (CCTs), from warm 2200 K for cozy indoor lighting to cool 6500 K daylight tones often used in office and industrial settings. It also enables varying levels of color rendering index (CRI), which typically range from 70 to 98, depending on the quality of the phosphor material used. Higher CRI levels improve how accurately colors appear under artificial light.

For specialty applications requiring enhanced red tones, violet-pump LEDs with three phosphors are used. These offer better R9 rendering, important in environments like art galleries and retail displays. Another method for generating white light involves additive RGB or RGBA color mixing. In this system, multiple LED chips emit red, green, and blue light that blend together. While this setup allows for dynamic lighting effects and full-spectrum control, it tends to offer lower efficacy and higher complexity than phosphor-based solutions.

What are the Benefits of Using LED Lighting?

LED lighting cuts energy use by up to 90%, lasts 10 to 25 times longer than traditional light bulbs, and contains no mercury. These advantages make LED lighting products both energy efficient and environmentally responsible. In addition to reducing electricity bills, LED lamps offer improved performance, durability, and light quality across many lighting applications.

Unlike fluorescent lamps, LED light bulbs reach full brightness instantly. They also perform well in cold environments, where compact fluorescent and incandescent bulbs tend to struggle. Whether you’re lighting a warehouse, office, or home, LEDs emit light with minimal heat and support long life with low maintenance costs.

These are just a few reasons why LED lighting has replaced incandescent and CFL bulbs in many settings.

Extend Lighting Lifespan

Most LED light sources used in homes are rated for an L70 lifetime of 50,000 hours, which means they retain 70% of their initial light output after that period. In industrial environments, premium LED luminaires can reach L80 at 100,000 hours, or more than 11 years of continuous 24/7 use.

In contrast, traditional incandescent light bulbs typically last around 1,000 hours. Compact fluorescent lamps perform slightly better, averaging 10,000 hours. However, neither match the longevity of LEDs.

LEDs don’t burn out the way incandescent lamps do. Instead, their brightness gradually declines, a process called lumen depreciation. This predictable decline allows you to schedule replacements based on performance, not failure, making LED lighting more reliable and easier to maintain.

Improve Durability and Reliability

LED lighting offers significant mechanical advantages over traditional light bulbs. As a solid state lighting technology, LEDs have no filaments, glass envelopes, or fragile components. That means they’re much more resistant to vibration and shock.

This durability makes LEDs a great fit for tough environments, think production floors, transit systems, and outdoor lighting exposed to harsh weather. Many industrial-grade LED lighting products feature sealed optics and housings that resist moisture, dust, and impact.

Luminaires rated IP65 or higher are commonly used outdoors or in manufacturing areas where exposure to water and debris is unavoidable. With fewer parts to break or fail, and superior design integration, LED fixtures provide dependable operation even under demanding conditions.

Reduce Environmental Impact

One of the most important benefits of LED lighting is its lower environmental impact. Unlike fluorescent lamps and compact fluorescent bulbs, LED lighting products are mercury-free. This makes them easier to dispose of safely and eliminates the need for special hazardous-waste handling procedures. If you’re managing large-scale lighting applications, this can significantly reduce both your environmental liability and disposal costs.

LEDs also last far longer than traditional incandescent bulbs. That extended useful life means fewer replacements—up to 25 fewer lamp changes over time—which cuts down on landfill waste and packaging. When used in commercial or industrial settings, this also reduces the number of service truck trips, saving fuel and lowering CO₂ emissions.

Because of their low maintenance and high energy efficiency, LED light sources help shrink your carbon footprint while maintaining excellent light output and performance.

Minimize Heat Emission for Safety

LED lighting emits very little heat compared to traditional light bulbs. For example, a standard 10-watt LED light bulb typically operates at surface temperatures below 60 °C. By contrast, a 60-watt incandescent light bulb can reach over 200 °C, creating a clear fire and burn risk in enclosed or contact-prone environments.

This difference matters when you’re installing lighting in homes, schools, retail spaces, or anywhere that prioritizes safety. The lower heat output also contributes to thermal management in your building, reducing the load on HVAC systems and supporting energy savings across the board.

Because LEDs produce light in only one direction and emit light more efficiently, they convert more of their electrical energy into visible light instead of waste heat.

Protect Sensitive Materials with No UV Emissions

If you need lighting that won’t damage delicate materials or surfaces, LEDs are your safest choice. Unlike incandescent lamps and many fluorescent lighting sources, LED lighting products emit negligible ultraviolet (UV) and infrared (IR) radiation. This makes them ideal for illuminating UV-sensitive environments such as museums, art galleries, and retail displays.

Without harmful UV rays, LEDs prevent pigment fading in artwork and reduce fabric discoloration in high-end merchandise or interior décor. That’s why many lighting designers and curators turn to LED light sources for installations that demand visual clarity without deterioration over time.

The lack of UV also means LEDs offer a better environment for skin-sensitive applications and environments where people are frequently exposed to artificial light. Whether you’re protecting materials, preserving visual appeal, or reducing risk, LED lamps offer a clean, directional light with minimal side effects.

Ensure Performance in Extreme Temperatures

LED lighting is engineered to perform reliably even in the most challenging environments. Whether you’re facing icy winters or scorching summers, LEDs are built to keep working. Unlike fluorescent lamps or compact fluorescent lighting, which struggle to ignite in subzero temperatures, LED light sources turn on instantly even at –40 °C. There’s no warm-up delay, making them ideal for cold storage, freezers, or outdoor use in northern climates.

In high-heat conditions, performance depends on the quality of the driver and the thermal management system. The heat sink design and the fixture’s ability to withstand ambient temperatures up to 50 °C are critical for protecting internal components. In these settings, it’s the LED driver, not the light emitting diode itself, that usually sets the limit for useful life. So if you’re operating in a hot climate, choosing fixtures with robust heat dissipation is key to maintaining long-term efficiency and durability.

Activate Lighting Instantly and Frequently

One of the most user-friendly advantages of LED technology is instant activation. Unlike incandescent lamps or high-intensity discharge (HID) lights, LED lighting products reach full brightness immediately when you flip the switch. There’s no flickering, no warm-up delay—just clean, visible light the moment you need it.

This fast response makes LED bulbs perfect for motion sensors, security lighting, and occupancy-based controls. If you’re outfitting a warehouse or parking garage, the ability to cycle lights on and off frequently without any lifespan penalty gives LEDs a serious edge. Traditional lighting types often degrade with repeated switching or have re-strike delays that waste time and energy.

Because LEDs emit light using solid-state lighting principles, the process is efficient and stable under frequent switching. Whether it’s hallway lighting, retail applications, or outdoor walkways, you can trust LED lamps to perform every time, no matter how often you use them.

Save Energy and Cut Utility Costs

Switching to LED lighting significantly lowers your electricity usage, especially when replacing traditional incandescent bulbs or metal-halide fixtures. LEDs consume far less power to produce the same, or even better, light output. For example, replacing a 400-watt metal-halide high-bay fixture with a 150-watt LED version results in about 62% energy savings. At a rate of $0.12 per kilowatt-hour, the payback time is often under three years.

The impact is even greater in large-scale applications. One tunnel retrofit project reduced lighting energy use by 63%, saving enough electricity to power approximately 340 average homes for a year. That’s a clear demonstration of how LED light sources can reduce both operating costs and environmental impact.

Because LED chips convert electrical energy directly into visible light without generating excessive heat, they offer unmatched energy efficiency.

Outperform Incandescent and CFL Bulbs

When comparing light sources side by side, LED lighting clearly outperforms both incandescent bulbs and compact fluorescent (CFL) lamps. A 60-watt incandescent bulb typically delivers around 800 lumens of light output. To reach the same brightness, a CFL consumes about 13 watts. But with a high-quality LED light bulb, you only need 9 watts to produce those same 800 lumens. That’s a significant drop in electrical energy use.

This difference comes down to efficacy. While incandescent lamps average just 15 lumens per watt, and CFLs reach about 60 lumens per watt, modern LED technology pushes that number to around 100 lumens per watt. Unlike incandescent and CFL bulbs, LEDs emit light using a solid-state lighting process that minimizes energy loss as heat.

Maximize Long-Term Financial Savings

If you’re looking at lighting as an investment, LEDs offer clear financial benefits over time. Sure, a single LED A-lamp might cost $3 upfront, while an incandescent light bulb sells for just $1. But that small price difference is offset by major savings in energy use and replacement costs. Over a typical 25,000-hour lifespan, one LED light bulb can save you more than $120 in total cost per socket, assuming $0.12 per kilowatt-hour.

The initial cost is outweighed by reduced electricity bills and fewer replacements. Traditional incandescent bulbs last about 1,000 hours. CFLs stretch that to around 8,000 hours. But with LEDs, you’re getting more than triple that lifespan, and without the mercury content of fluorescent lamps. Combined with lower maintenance costs and energy-efficient performance.

Requires Lower Voltage to Operate

LEDs require low-voltage power to function, which opens up practical and safe lighting options in outdoor and remote settings. Most LED light sources used in landscaping or architectural lighting run on just 12 to 24 volts DC. This is far safer than high-voltage systems and ideal if you’re using solar panels or PV-battery systems to power lighting in areas without a direct electrical grid connection.

Because LEDs produce light using a semiconductor device, they conduct electricity efficiently at low current levels. The electrical properties of LED drivers allow for steady light emission while conserving energy. Whether you’re installing pathway lights around a garden, illuminating signage, or powering street fixtures in rural areas, low-voltage LED lighting provides reliable, safe, and energy-efficient performance, even when connected to off-grid systems.

What are the Key Characteristics and Parameters of LED Lighting?

The primary parameters include luminous flux, measured in lumens, which tells you how much visible light the fixture produces. Efficacy, expressed in lumens per watt, reflects how efficiently the LED converts electrical energy into light output. You’ll also come across correlated color temperature (CCT) and color rendering index (CRI), both of which influence how the light appears and how accurately it renders colors under artificial light.

Other important metrics include binning, which ensures color and brightness consistency among multiple LED chips, and beam angle, which affects light distribution. Additionally, power factor (PF) and total harmonic distortion (THD) measure how effectively the electrical current flows through the driver and impacts your broader power supply system.

These performance values help you compare LEDs to traditional incandescent bulbs, compact fluorescent lamps, and other light sources. Since LEDs emit light in only one direction, understanding parameters like beam angle becomes critical when selecting lighting types for specific applications.

Brightness and Lumen Output

Brightness in LED lighting is defined by lumen output rather than wattage, unlike incandescent light bulbs. Lumens indicate the total amount of visible light a lamp emits, and in LED products, this brightness scales with the drive current supplied to the semiconductor device.

However, increasing current also increases heat, and that brings diminishing returns. Due to thermal droop, light output becomes less efficient at high current levels. That’s why it’s advised to operate LEDs at or below 70% of their maximum rated current to preserve their long life and energy efficiency.

If you’re dealing with customized lighting applications, it helps to refer to manufacturer data. These typically include graphs that let you estimate lumen output at various current levels not directly listed.

Color Options

LED lighting offers a full spectrum of color options, including white light variants from 2200 K candle-warm to 6500 K daylight, and colored light ranging from 400 nm violet to 660 nm deep-red. These variations serve a wide range of lighting applications, from home ambiance to industrial signaling and even horticulture.

Unlike incandescent bulbs that produce light through thermal radiation, light emitting diodes emit light by direct electrical excitation, allowing for specific wavelength control. This makes LED light sources highly versatile in generating both white and colored outputs. Solid state lighting systems that use multiple LED chips can blend different wavelengths for better light quality and higher color rendering index.

White LEDs

White light from LEDs is available in a range of color temperatures, typically grouped into warm white (2200 K–3000 K), neutral white (3500 K–4100 K), and cool white (5000 K–6500 K). These are not created by LEDs emitting white directly but rather through phosphor conversion. A blue LED excites a phosphor material that emits broad-spectrum light to produce white light.

Lower correlated color temperatures require more phosphor coating, which leads to greater phosphor losses and slightly lower efficacy. However, these warmer tones are often preferred for residential and hospitality environments due to their comfort and contrast with sunlight. While incandescent lamps were traditionally used for warm light, white LEDs offer similar appearance with improved energy efficiency and reduced maintenance costs. You’ll also benefit from reduced heat and longer useful life compared to incandescent light sources.

Color LEDs

Color LEDs, unlike white LEDs, are specified by their peak and dominant wavelengths in nanometers. These wavelengths correspond to specific visible light colors, giving you the ability to select precise tones for indicator lights, architectural accents, or display lighting.

For example, royal-blue LEDs peak at around 450 nm, while cyan falls near 505 nm. Green typically targets 525 nm, amber at 590 nm, red at 625 nm, and deep-red at 660 nm. These colored LEDs are also useful in signal lighting, plant growth systems, and compact fluorescent replacements in signage. Unlike incandescent light bulbs, which emit broad-spectrum light, LEDs produce monochromatic light that requires no filters.

Common LED Color Wavelength Table

Color Name	Wavelength (nm)
Violet	400–405
Deep Violet	410
Purple	415
Blue-Violet	420
Blue	430–445
Royal Blue	450
Sky Blue	460
Cyan	505
True Green	515
Green	525
Yellow-Green	540
Lime	550
Yellow	570
Amber	590
Orange	605
Red-Orange	615
Red	625
Deep Red	660
Infrared (Near IR)	730
Far Red	740

Color Temperature

Color temperature describes the shade of white light produced by a light source, and it’s measured in Kelvins (K). On the low end of the Kelvin scale, around 2200–3000 K, LED bulbs produce a warm white light similar to traditional incandescent bulbs. These are commonly used in homes where comfort and relaxation are key. At mid-range levels like 3500–4100 K, the light becomes neutral white, often used in retail or workspaces. Above 5000 K, LEDs emit a cool daylight-like appearance, useful for task lighting or garages.

However, high correlated color temperatures at night, especially those above 5000 K, can suppress melatonin and disrupt sleep. That’s why you’ll often see residential LED lighting products rated at 2700–3000 K, providing both light output and comfort. Unlike incandescent lamps, which shift color as they dim, LED technology can maintain consistent color temperature through the use of phosphor coating and precise electrical control.

Color Rendering Index (CRI)

Color Rendering Index, or CRI, measures how accurately a light source reveals colors compared to natural light. On a scale from 0 to 100, higher numbers indicate better color rendering. Most standard LED light sources have a CRI above 80, which is acceptable for many lighting applications. However, if you’re aiming for more precise color fidelity, like in art studios or healthcare settings, you should look for high-CRI LEDs rated 90 or higher.

The CRI Ra value evaluates eight standard pastel colors. But there’s also R9, which measures strong red rendering, a crucial factor for skin tones and food presentation. High-performance LED lighting with excellent R9 values is now widely available, even though these options may sacrifice about 10% in efficacy. That said, the tradeoff can be worth it when light quality and visual clarity matter. Unlike fluorescent lamps or incandescent and CFL bulbs, LEDs offer more tunable and consistent color rendering across various lighting types.

Beam Angle and Light Distribution

Beam angle defines how wide or narrow the emitted light spreads from an LED light bulb. This characteristic affects both illumination coverage and intensity. In LED lighting products, light distribution is controlled using optics, reflectors, or diffusers. You’ll find that beam angles can range from narrow spots to wide floods depending on the application.

Chip-on-board (COB) LEDs often use bezel optics to narrow beams below 10°, which is ideal for accent lighting or spotlighting. On the other hand, flat panel LEDs might feature wide batwing diffusers, creating spreads over 120°, suitable for general lighting applications. Because light emitting diodes produce light in only one direction, they naturally avoid the wasted light typical of incandescent light bulbs. That makes them highly efficient for directional tasks, while still allowing flexibility through optical engineering. Whether you’re lighting a hallway, workspace, or outdoor space, selecting the right beam angle improves both energy savings and visual comfort.

How Do You Power and Drive LED Lights?

LED lighting depends on carefully controlled electrical power to ensure stable light output, long life, and optimal performance. Unlike traditional light bulbs such as incandescent or fluorescent lamps, LED lights require specialized power regulation because they operate on low-voltage direct current (DC). To power these light emitting diode systems properly, you need to match their electrical requirements precisely. This involves selecting between constant-current (CC) and constant-voltage (CV) drivers, which serve different roles based on the LED design and application.

Constant-current drivers are most common in modern LED lighting products. They maintain a steady current through the LED chips, regardless of minor fluctuations in voltage. This stability is critical because the light output, color consistency, and lifetime of LEDs are highly sensitive to current levels. A mismatch can lead to overheating, degraded light quality, or premature failure. Constant-voltage drivers, on the other hand, supply a fixed voltage level. These are often used for LED strips or modules where internal circuits regulate current.

Regardless of driver type, it is essential to match the forward voltage of the LED string, adding approximately 2 volts as headroom for stable operation. In well-designed LED lighting systems, advanced drivers include power factor correction (PFC) greater than 0.9, improving energy efficiency and reducing waste. They also limit ripple current to below 10 percent, which helps prevent flickering and protects light quality over time.

LED Drivers

The LED driver functions as the heart of your lighting system’s voltage regulation. Without it, the precise electrical energy that your LEDs need could not be safely delivered. In most cases, drivers use either switched-mode power supplies (SMPS) or linear regulators, each having distinct advantages depending on your lighting application.

Switched-mode drivers, including buck, boost, and flyback converters, dominate most of the lighting industry due to their high efficiency, which typically ranges from 85% to 94%. They handle wide input voltage ranges, making them compatible with various power grids and lighting types. However, because they operate by rapidly switching the current on and off, they may generate electromagnetic interference (EMI) that must be filtered.

In contrast, linear regulators are simpler in design and produce minimal noise. They work well in flicker-sensitive environments like recording studios or certain medical applications but sacrifice efficiency, converting excess voltage into heat. You can think of your LED driver like a cruise control system in a car, it adjusts current flow dynamically as conditions change, keeping your LEDs stable even when temperature or supply voltage varies.

Power Supply Options

Switched-mode power supplies (SMPS) are widely used across general lighting applications because they handle broad voltage inputs, typically from 120 to 277 volts. Their compact size and high energy efficiency make them ideal for both residential and industrial LED lamps, fixtures, and high-power LEDs.

On the other hand, linear power supplies excel in delivering extremely stable current with very low noise. They are especially suited for situations where even minimal flicker could cause problems, such as broadcast studios or precision laboratory lighting. However, their low efficiency and larger size often make them less suitable for large-scale installations where energy savings and compact design are priorities.

Voltage and Current Requirements

For your LED lighting system to work properly, you need to match both voltage and current to the specifications of the light emitting diodes. Unlike incandescent light bulbs or fluorescent lamps, LEDs operate as solid state lighting devices. They require carefully controlled electrical energy to ensure consistent light output, long life, and safety.

The basic formula you should follow is simple:
Watts = Forward Voltage × Current (A).

Each LED chip has a forward voltage rating depending on its semiconductor material. For example, red LEDs often require around 2 volts, while blue LEDs or white LEDs may need 3 to 3.5 volts. When multiple LED chips are connected in series, you must sum their forward voltages to determine the total voltage supplied by the power source.

At the same time, controlling current levels is critical. Excess current can overheat the semiconductor device, degrading light quality and reducing lifespan. Proper thermal management helps protect the p-n junction. You should always ensure that junction temperatures remain below 110°C by either limiting current or improving heat sink performance. This protects the phosphor coating, maintains consistent color temperature, and preserves light emission stability.

What are the Different Types of LEDs?

LED lighting technology has advanced rapidly, giving you a wide selection of LED types to fit various lighting applications. The most common families include mid-power SMD LEDs, high-power LEDs, chip-on-board (COB), chip-scale package (CSP), and through-hole 5 mm LEDs. Each type offers distinct advantages depending on the lighting products you need for your space.

Mid-power SMD LEDs dominate many commercial fixtures, delivering energy efficient performance for troffers and linear panels. High-power LEDs handle greater current levels, making them ideal for demanding outdoor and industrial fixtures where brightness and durability matter. COB LEDs provide intense light output from a compact form, while CSP LEDs reduce manufacturing complexity by eliminating traditional packaging. The older through-hole 5 mm LEDs remain common in indicator lights and signal lights but are less suited for general lighting applications.

SMD LEDs (Surface-Mount Device)

SMD LEDs have become the backbone of today’s LED lighting products due to their versatility, compact size, and high efficiency. You will often find these solid state lighting devices used in LED panels, troffers, linear high bays, and other general lighting applications where widespread use of efficient light sources is critical. These tiny light sources are directly mounted onto a circuit board, which simplifies manufacturing and enables dense arrays of multiple LED chips.

Key variants such as SMD 2835, 3030, and 5630 are widely used. Their drive currents typically range from 30 to 200 milliamps, allowing for flexible brightness control. In laboratory conditions, they can achieve efficacies up to 210 lumens per watt, showcasing their ability to produce high light output while consuming less electricity. Unlike incandescent lamps, which emit light in all directions and generate significant heat, SMD LEDs emit light in only one direction, minimizing optical losses and improving energy efficiency.

Because they produce very little heat compared to incandescent bulbs or compact fluorescent lamps, thermal management becomes more manageable, extending useful life and maintaining stable light quality.

COB LEDs (Chip on Board)

As you move into applications demanding higher light output, COB LEDs play a critical role. These devices group multiple LED chips closely on a ceramic substrate, forming a dense array capable of producing over 10,000 lumens from a single emitter. This configuration allows you to achieve intense brightness while maintaining excellent thermal efficiency, thanks to the substrate’s ability to conduct heat away from the semiconductor device.

COB LEDs are commonly used in high-intensity fixtures such as high-bay warehouse lighting, floodlights, and retail accent lighting where directional light distribution and compact size are essential. Unlike traditional incandescent bulbs or fluorescent lighting, COB LEDs concentrate light in a small area, allowing precise beam control and minimizing light loss.

Thermal management remains crucial, but COB design simplifies it by spreading heat evenly across the substrate, often assisted by a heat sink. The result is an energy efficient, durable light source that provides both bright white light and consistent color temperature across its operational life.

High-Power LEDs

High-power LEDs are designed for lighting applications where intense brightness and durability are essential. You will often see these light emitting diodes used in industrial, outdoor, and architectural fixtures where reliable light output and long life are critical. Unlike traditional incandescent bulbs or fluorescent lamps, high-power LEDs handle significantly higher current levels while remaining energy efficient.

These LEDs typically operate at drive currents between 350 and 1500 milliamps. Some configurations use a single die, while others stack multiple dies in series to boost light output. The semiconductor chips are mounted on aluminium-nitride substrates, which offer excellent thermal conductivity. This structure allows the device to conduct electricity efficiently while maintaining stable junction temperatures. Proper thermal management with an effective heat sink ensures long life, stable color temperature, and consistent light quality.

Thanks to their robust design, high-power LEDs produce very little heat compared to incandescent light bulbs. They deliver intense visible light while using less electricity, contributing to both energy savings and lower maintenance costs.

Integrated LED Modules

Integrated LED modules simplify your lighting installation while providing reliable, long-term performance. Unlike conventional light bulbs that you replace when they burn out, these modules combine multiple LED chips, heat sinks, circuit boards, and optics into a single, compact unit that is not designed for replacement. You benefit from a lighting product that is both efficient and engineered for thermal control right from the start.

Inside each integrated module, smart chipsets manage dimming functions, diagnostic reporting, and even NFC programming for wireless adjustments. These features allow you to fine-tune lighting levels, monitor performance, and extend useful life across many lighting applications. Integrated LED modules are ideal for industrial facilities, commercial buildings, and large-scale LED lighting products where long life and minimal maintenance costs are priorities.

Because they incorporate solid state lighting technology and advanced thermal management, these modules emit light with excellent efficiency, produce very little heat, and maintain stable color rendering over time.

Smart/Addressable LEDs (Optional)

Smart and addressable LEDs add flexibility to your lighting system by enabling zoning, automated control, and dynamic lighting effects. These LEDs are widely used in smart warehouses, commercial buildings, and entertainment venues where lighting must adapt to changing needs or environmental inputs. Unlike traditional incandescent lamps or compact fluorescent lighting, smart LEDs are fully programmable and responsive.

Addressable LEDs operate on control protocols such as DMX or SPI, allowing you to control each pixel or segment independently. This makes them ideal for RGB signage, display lighting, and even AGV navigation beacons in industrial facilities. The light emitting diodes in these systems can produce colored light across a wide range of wavelengths while maintaining high energy efficiency and minimal heat generation.

Smart LED systems integrate seamlessly with connected lighting networks, giving you the ability to optimize energy use, schedule dimming cycles, and manage large lighting installations from centralized controls. As part of modern LED technology, smart addressable LEDs continue to evolve, offering you more control, better performance, and greater energy savings across a wide variety of lighting applications.

Other LED Types

While most LED lighting products you encounter in commercial or industrial applications rely on advanced solid state lighting designs, several other LED types exist for more specialized uses. These versions are generally less relevant for large-scale lighting but still play important roles in electronics, indicators, and low-power devices where compact size or basic signaling is required. Unlike traditional incandescent bulbs or fluorescent lamps, these LEDs offer long life, low maintenance, and very little heat generation, even though they are not designed for area illumination.

Through-Hole LEDs (DIP)

Through-hole LEDs, often called DIP LEDs, are among the earliest forms of light emitting diode technology. You will still find them widely used in electronics, simple circuit boards, and indicator lights where basic visual status is needed. While they emit light efficiently, their limited light output and narrow viewing angle make them unsuitable for general lighting applications like led lamps or high power leds used in lighting fixtures.

Flashing LEDs

Flashing LEDs integrate internal timer circuits that allow them to blink without external controllers. You often see these used in toys, alerts, and some basic signal lights where simple, low-cost visual indicators are needed. Although they consume very little electricity and generate minimal heat, they do not contribute to general lighting applications where consistent white light or colored light is required.

Bi-Color and Tri-Color LEDs

Bi-color and tri-color LEDs combine multiple led chips within one package, allowing you to display different colors depending on how electrical current flows through the two electrodes. You typically find these LEDs in status lights, control panels, or simple displays, but they do not serve as light sources for widespread use in residential, commercial, or industrial LED lighting products.

RGB/RGBW LEDs

RGB and RGBW LEDs expand your options when you want dynamic, colorful lighting effects. These light emitting diodes combine multiple led chips, red, green, and blue, to produce colored light across a wide spectrum. When you add white LEDs (RGBW), you gain even more versatility for applications requiring both pure white light and vivid colors.

You will mostly find RGB and RGBW LEDs in decorative lighting, entertainment venues, retail displays, or event spaces where flexible light output and color control matter. Unlike incandescent bulbs or fluorescent lamps, these LEDs emit light in only one direction, allowing precise light distribution with high energy efficiency. They produce very little heat, which minimizes thermal management challenges even when multiple leds emit at high brightness levels.

With proper drivers and control systems, you can program complex color shifts, dimming sequences, and light animations.

Infrared LEDs

Infrared LEDs serve a very different role compared to visible light sources. Instead of producing light you can see, these light emitting diodes emit infrared wavelengths, making them suitable for security systems, night-vision cameras, and various sensor-based applications.

You often encounter infrared LEDs in motion detectors, surveillance systems, and optical communication devices. Their ability to emit specific wavelengths outside the visible light spectrum allows them to function in total darkness while remaining invisible to the human eye. Unlike incandescent light bulbs, which waste much of their energy as heat, infrared LEDs convert electrical energy efficiently into directed infrared light, contributing to energy savings in sensor applications..

UV LEDs

UV LEDs specialize in generating ultraviolet light for highly targeted uses. These solid state lighting devices emit light at wavelengths below the visible spectrum, making them essential for disinfection, medical sterilization, and curing processes in manufacturing.

When you use UV LEDs for disinfection, they damage microbial DNA, helping to eliminate bacteria and viruses without chemicals. In industrial environments, they assist in curing adhesives, coatings, and inks where controlled UV exposure is required for material hardening. Unlike fluorescent lamps historically used for similar purposes, UV LEDs operate at lower voltages, produce very little heat, and avoid hazardous mercury content, simplifying both operation and disposal.

While not suitable for general lighting applications like led light bulbs or high power leds, UV LEDs demonstrate how diverse led technology has become, serving many lighting applications that go far beyond simple illumination.

What are the Different LED Lighting Products and Types?

The most common LED lighting products include LED bulbs, LED strip lights, high-bay and low-bay fixtures, downlights, tubes, panels, floodlights, integrated luminaires, and smart lighting systems. Each of these products takes advantage of light emitting diode technology to provide energy efficient, long life illumination for many lighting applications.

Unlike incandescent bulbs or compact fluorescent lamps, LED lighting products emit light directionally, improving light output and minimizing energy loss. They produce very little heat compared to incandescent light bulbs, which waste most of their energy as heat. LED technology allows you to achieve both high efficiency and excellent light quality while reducing maintenance costs across residential, commercial, and industrial spaces.

LED Bulbs (A19, GU10, PAR38)

LED bulbs are among the most recognizable forms of LED lighting products, often used to replace traditional incandescent light bulbs in homes, offices, hotels, and retail spaces. Models like A19, GU10, and PAR38 fit into existing fixtures, making upgrades to energy efficient lighting simple and cost-effective for you.

A19 bulbs are typically used for general household lighting. They produce white light while consuming far less electrical energy than incandescent or fluorescent lamps. GU10 bulbs, with their twist-lock base, often serve in accent lighting or track systems in hospitality or mixed-use spaces. PAR38 bulbs are larger and designed for directional lighting needs, such as retail displays or outdoor floodlighting.

These LED light bulbs emit light efficiently in only one direction, reducing the need for reflectors and diffusers commonly required with incandescent lamps. Thanks to solid state lighting design, LED bulbs provide long life, frequent switching capability, and high light quality without generating excessive heat.

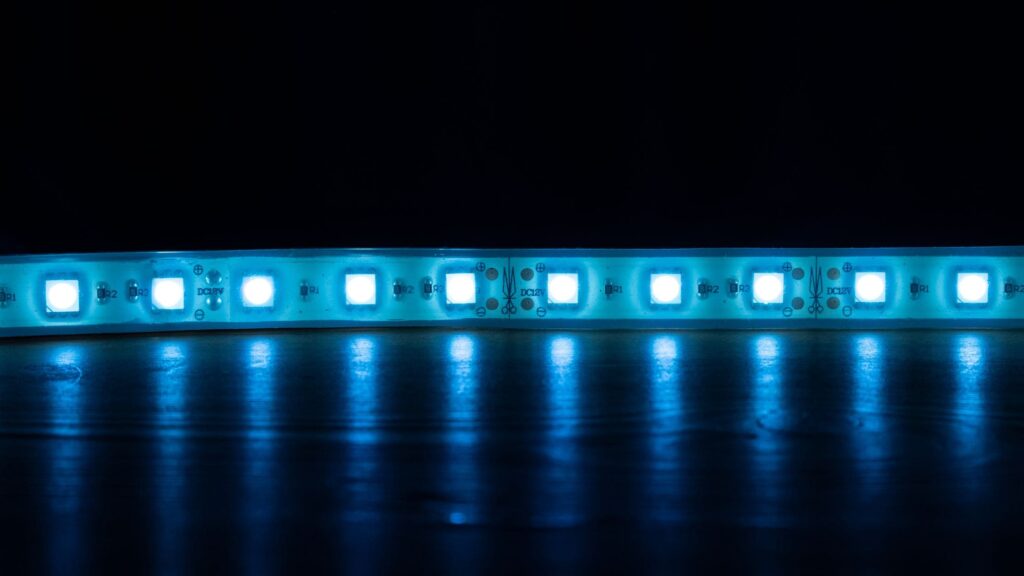

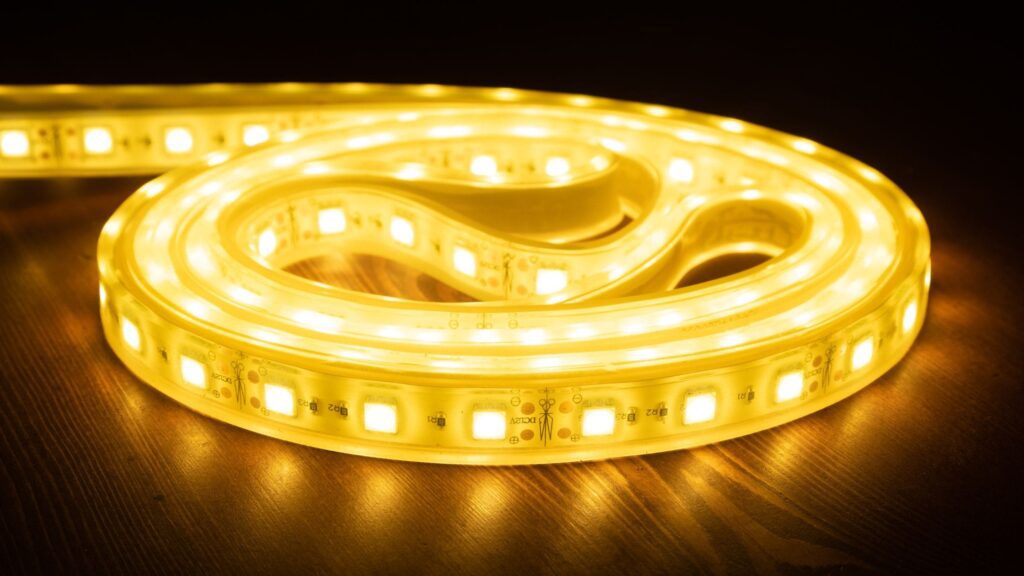

LED Strip Lights

LED strip lights bring flexibility and creativity to decorative and architectural lighting zones. These thin, adhesive-backed strips integrate multiple LED chips along a flexible circuit board, allowing you to install lighting in spaces where traditional light bulbs or fixtures cannot fit.

You will often see LED strip lights used for under-cabinet lighting, signage, and accent lighting in both residential and commercial environments. They emit light with very little heat, operate on low voltage, and can produce either white light or colored light depending on the phosphor coating and semiconductor device used. Some advanced models even offer dimming or color-shifting features.

Unlike incandescent and CFL bulbs, LED strip lights deliver highly efficient illumination while consuming less electricity.

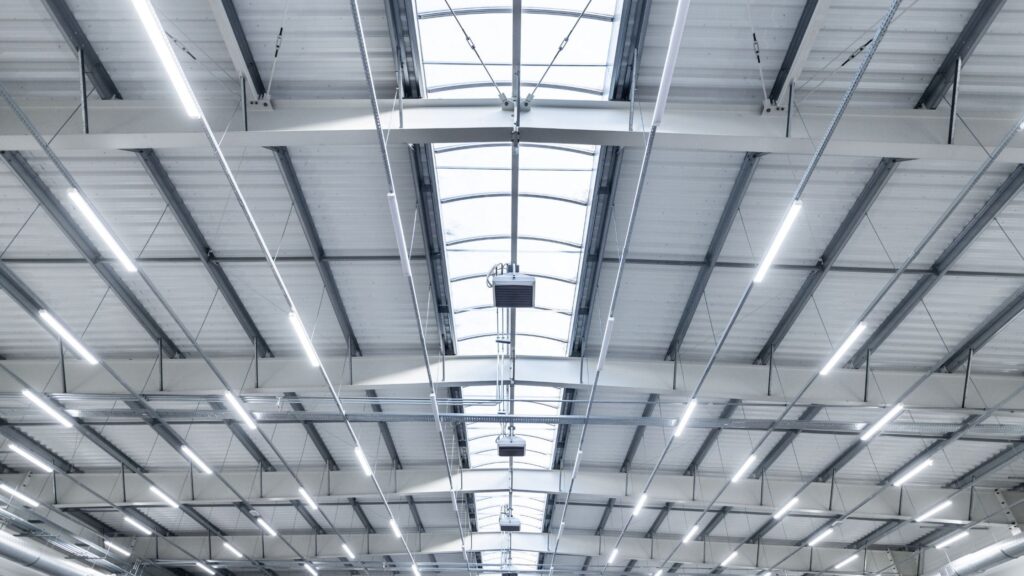

LED High Bay and Low Bay Lights

When you’re lighting large industrial spaces like warehouses or manufacturing plants, LED high bay and low bay lights are often your most effective solution. These led lighting products take full advantage of solid state lighting technology to provide high efficiency, long life, and consistent light output across large areas.

High bay lights are designed for ceilings typically 20 feet or higher. Round (UFO) designs offer focused, downward light distribution, while linear high bays spread light more evenly across wide spaces like factory floors. Low bay fixtures are intended for ceiling heights below 20 feet, delivering sufficient brightness without excessive glare. Both types rely on multiple led chips, heat sinks for thermal management, and advanced optics to optimize light distribution.

Compared to traditional incandescent lamps or fluorescent lighting, these LED fixtures emit light in only one direction, minimize wasted energy, and generate very little heat.

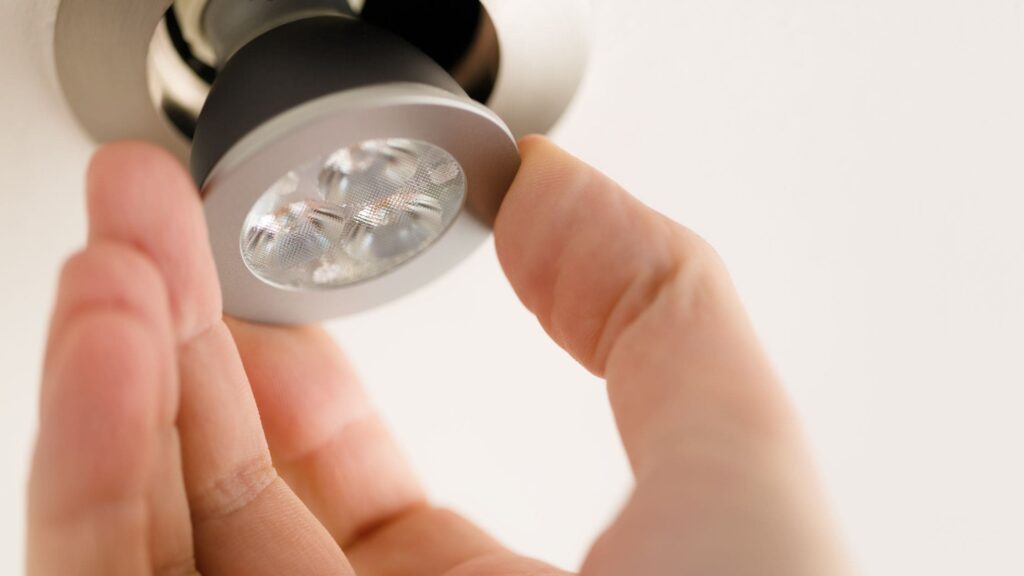

LED Downlights / Recessed Lighting

LED downlights, also known as recessed lighting, offer a clean, integrated look while providing efficient illumination. You often use these led lighting products in offices, hotels, residential spaces, and mixed-use projects where aesthetics and energy efficiency both matter.

Unlike traditional incandescent bulbs or compact fluorescent lamps, LED downlights produce light through a flat or slightly domed surface recessed into the ceiling. This design directs light output downward, reducing glare and improving visual comfort. Solid state lighting technology allows these fixtures to emit light instantly at full brightness while consuming far less electricity than incandescent light sources.

LED downlights come in multiple sizes, beam angles, and color temperatures to fit your lighting applications. Their heat sink design ensures proper thermal management, extending useful life and minimizing maintenance costs.

LED Tubes (T8/T5)

LED tubes offer you a practical solution for upgrading older fluorescent lamps in commercial and industrial settings. Designed to fit into existing fixtures, these LED light sources allow you to replace T8 and T5 compact fluorescent tubes with energy efficient alternatives while using much less electricity.

LED tubes produce white light instantly without the flickering or warm-up delays seen in traditional fluorescent lighting. They emit light in only one direction, eliminating the need for reflectors that fluorescent lamps often require. This directional light output improves both efficiency and light distribution across workspaces, retail floors, or offices.

Internally, these LED products house multiple led chips and use integrated drivers to regulate electrical current passes. Thermal management systems maintain stable operating temperatures, contributing to long life and lower maintenance costs.

LED Panels

LED panels offer you broad, even illumination in spaces like offices, conference rooms, showrooms, and commercial retail areas. These LED lighting products are designed to distribute light output across large surfaces while minimizing glare and maintaining excellent light quality. Thanks to solid state lighting technology, LED panels emit light in only one direction, producing a soft, uniform glow without the hot spots often seen with traditional fluorescent lamps or incandescent light bulbs.

Inside each panel, multiple LED chips are arranged along the edges or across the surface, directing light through a diffuser that ensures even distribution. These panels produce white light with adjustable color temperatures, allowing you to create neutral white or warm environments depending on the space. Thermal management systems, often including integrated heat sinks, help dissipate any heat generated, extending the panel’s useful life while preserving color rendering index stability.

LED Floodlights / Outdoor Fixtures

LED floodlights serve a critical role when you need reliable outdoor illumination for parking lots, loading docks, perimeter security, and building exteriors. These LED lighting products take advantage of directional light emitting diode technology to focus light output precisely where it’s needed, reducing light spill and maximizing efficiency.

Unlike incandescent lamps or fluorescent lighting that emit light in all directions and waste much of their electrical energy as heat, LED floodlights emit light in only one direction. The design incorporates multiple LED chips mounted on a circuit board, paired with reflectors and optics to control the beam angle. Heat sinks provide essential thermal management to maintain long life and prevent lumen degradation even under harsh outdoor conditions.

LED floodlights produce very little heat, offer immediate full brightness, and withstand frequent switching without compromising performance.

Integrated vs Retrofit LEDs

When you’re evaluating LED lighting products for your facility, it’s important to understand the difference between integrated and retrofit LEDs. Integrated LED luminaires are purpose-built fixtures where the LED chips, heat sinks, drivers, and optics are all designed together as a complete lighting system. This allows for superior thermal management, optimized light distribution, and longer useful life compared to many retrofit solutions.

Retrofit LEDs, on the other hand, allow you to upgrade existing fixtures by replacing traditional incandescent bulbs, compact fluorescent lamps, or fluorescent tubes with LED light sources. These retrofit solutions are often simpler to install and more cost-effective upfront, but they may not offer the same long-term performance as fully integrated systems.

Integrated LED products typically achieve better light quality, energy efficiency, and long-term energy savings while reducing maintenance costs.

Smart LED Lighting

Smart LED lighting gives you full control over your light sources while delivering energy savings and advanced functionality. These LED lighting products combine light emitting diode technology with integrated controls, allowing you to adjust brightness, color temperature, and scheduling through your smartphone or voice assistants.

Unlike traditional incandescent bulbs or fluorescent lamps that offer limited flexibility, smart LED bulbs and fixtures let you customize light output for specific tasks, moods, or times of day. Some models even allow you to adjust between white light and colored light, depending on your needs. Because they rely on solid state lighting, these products emit light instantly, generate very little heat, and maintain long life with low maintenance costs.

What Is Smart and Connected LED Lighting?

Smart and connected LED lighting represents one of the most advanced developments in the lighting industry. Using Wi-Fi, Bluetooth, Zigbee, or proprietary wireless protocols, these light emitting diode systems allow you to automate, monitor, and control your lighting from anywhere.

You can easily integrate these LED lighting products into smart home ecosystems, enabling voice control via assistants like Alexa or Google Assistant. Beyond residential use, commercial buildings use connected LED fixtures for automated scheduling, occupancy sensing, and energy optimization. These solid state lighting systems communicate with cloud-based platforms, collecting data on energy usage, light output, and maintenance needs.

Unlike incandescent lamps or compact fluorescent bulbs, smart LEDs offer both high efficiency and full dimming capabilities without sacrificing performance. Multiple LED chips, advanced drivers, and precise thermal management ensure that connected LED products deliver consistent color temperature, reliable color rendering index, and excellent long-term performance across many lighting applications.

How to Choose the Right LED Lighting for Your Needs?

Selecting the right LED lighting products requires you to evaluate several key factors. By focusing on the following criteria, you can ensure your lighting application delivers optimal performance, energy efficiency, and long life:

• Brightness (Lumens): Check the lumen rating to match light output to the size and function of the space. More lumens mean brighter light.
• Color Temperature (CCT): Choose warmer color temperatures (2700K–3000K) for residential spaces or cooler tones (4000K–5000K) for work areas.
• Color Rendering Index (CRI): Look for CRI values above 80 for good color accuracy; higher CRI (90+) is ideal for retail, hospitality, or art displays.
• Fixture Compatibility: Ensure that your chosen LED bulbs or lamps fit your existing fixtures or determine if integrated LED lighting products are more suitable.
• Application Type: Evaluate whether you need LED panels, downlights, high bays, strip lights, floodlights, or smart LED lighting for your specific environment.
• Energy Efficiency (Wattage): Verify wattage and expected energy savings compared to traditional incandescent bulbs, fluorescent lamps, or compact fluorescent options.
• Dimming Compatibility: Confirm whether your LED drivers and power supply support dimming features without causing flicker or color shift.
• Maintenance and Lifetime: Review rated useful life, typically 25,000 to 50,000 hours, and maintenance costs over the product’s lifetime.

How LED Lighting Performance Is Measured and Controlled?

When you evaluate LED lighting products, you need to understand how their performance is measured and controlled. Unlike traditional incandescent bulbs or compact fluorescent lamps, LED lighting relies on semiconductor device behavior, which demands more precise testing and control methods. Key parameters include luminous efficacy, color temperature, color rendering index, and thermal management. These factors determine how efficiently the LED converts electrical energy into visible light, how accurately it reproduces colors, and how stable the light output remains over time.

LED light sources produce light in one direction and emit very little heat, allowing for superior energy efficiency compared to traditional light bulbs. To maintain this performance, manufacturers focus on controlling forward voltage, current levels, and heat sink design. You also benefit from modern power supply technologies and LED drivers that help stabilize electrical current passing through multiple LED chips, ensuring reliable light emission and extending the useful life of the entire lighting system.

Understand Luminous Efficacy and Output (lumens per watt)

Luminous efficacy is one of the most important ways to measure how efficiently LED lighting converts electrical energy into visible light. You calculate this by dividing the total light output, measured in lumens, by the power consumption in watts. For example, high-quality LED light bulbs often achieve 100 to 200 lumens per watt, while traditional incandescent lamps only deliver about 15 lumens per watt. This dramatic improvement in energy efficiency allows you to achieve significant energy savings while producing the same or better brightness.

Because LEDs emit light in only one direction, unlike incandescent light bulbs which radiate in all directions, less optical hardware is needed to direct the beam. This directional control enhances light distribution while minimizing wasted light and improving overall lighting applications.

Control Light Quality with Color Temperature (CCT)

Color temperature describes the appearance of the white light produced by your LED lighting, measured in Kelvin (K). Warmer tones, like 2700K or 3000K, resemble the soft glow of traditional incandescent bulbs, making them ideal for residential spaces. Cooler tones, ranging from 4000K to 6500K, produce neutral white or daylight-like illumination, often preferred in offices, retail spaces, and industrial facilities where task visibility is important.

Modern LED lighting products allow you to select color temperatures that suit specific applications while maintaining high light quality. This is achieved through phosphor conversion, where blue LEDs are coated with phosphor material to produce white light across different color temperatures. Maintaining consistent color temperature across multiple LEDs requires careful binning during manufacturing to ensure uniformity across fixtures.

Ensure Color Accuracy with CRI (Color Rendering Index)

Color accuracy is measured by the Color Rendering Index (CRI). CRI uses a scale from 0 to 100, where higher values indicate better color reproduction. Traditional incandescent bulbs score near 100, while many older fluorescent lamps performed poorly. High-quality LED lamps today often reach CRI levels of 80 to 98, delivering excellent color fidelity.

The CRI test evaluates how well a light source reproduces eight pastel reference colors. However, one critical factor you should not overlook is R9, the saturated red component which impacts how rich skin tones, artwork, and food appear. Many advanced LED lighting products now offer high R9 values, improving visual quality in both commercial and residential spaces. Even though higher CRI may slightly lower energy efficiency, the trade-off ensures superior light quality for many lighting applications.

Maintain Consistency with LED Binning

Consistency is critical when you install multiple LED lighting products within the same space. This is where LED binning comes into play. Binning sorts LEDs based on key parameters such as color temperature, luminous flux, forward voltage, and chromaticity. ANSI binning codes define acceptable ranges for chromaticity coordinates, ensuring color uniformity across different fixtures and batches.

Without tight binning controls, you may encounter noticeable color shifts between adjacent LED light bulbs, even if they are labeled with the same color temperature. Proper binning reduces these variations, ensuring your lighting appears seamless across your office, retail store, or industrial facility. Reliable manufacturers invest in strict binning procedures to maintain stable white light output, preventing uneven illumination that could distract or reduce comfort. In high-end lighting applications, like retail accent lighting or art galleries, binning precision is especially crucial to maintain visual consistency.

Optimize Efficiency with Forward Voltage Matching

To achieve peak energy efficiency, you need to consider forward voltage matching when designing or selecting LED lighting products. Forward voltage refers to the minimum voltage required for the light emitting diode to conduct electricity and emit light. This voltage varies slightly between individual LED chips, even within the same production batch.

Matching LEDs with similar forward voltage characteristics allows the circuit board and driver to maintain stable electrical current passing through multiple LEDs. This balance improves energy savings while preventing premature failure from excessive current flow. Forward voltage typically ranges from about 2 volts for red LEDs to 3-4 volts for blue LEDs and white LEDs that use phosphor conversion. Matching also helps avoid overdriving certain LEDs, which can cause thermal stress and reduced useful life.

Evaluate Thermal Management and Heat Dissipation

Thermal management directly influences how long your LED lighting products will last. Even though LEDs emit very little heat as visible light, heat still builds up at the semiconductor junction where light emission occurs. Without proper heat dissipation, this temperature rise can reduce both light output and useful life. Every 10°C increase at the junction may halve the expected lifetime of an LED.

Heat sinks, usually made of aluminum, help transfer this thermal energy away from the LED chips. You’ll often see finned heat sink designs on high power LEDs and solid state lighting fixtures, where thermal management becomes critical. The IEC TM-21 standard helps predict lumen maintenance over time, giving you a reliable projection of how long your LED lamps will maintain at least 70% of their initial light output (L70).

Are There Any Drawbacks to Using LEDs?

Yes. The initial cost of LED lighting products is higher compared to traditional incandescent bulbs or compact fluorescent lamps. Though you benefit from energy savings over time, the up-front investment may feel significant, especially in large-scale installations.

Dimming performance can also present challenges. Not all dimmers are compatible with LED drivers, requiring carefully matched components. Poorly designed drivers may introduce flicker exceeding 30% at 120 Hz, which can lead to eye strain or even stroboscopic effects in certain environments. Some low-cost LED light bulbs use inferior heat sinks or substandard phosphor materials, causing early failures, rapid color shift, or dull, inaccurate light output.

Address LED Flicker and Temporal Light Artifacts

Flicker is one of the more complex issues you might encounter with LED lighting. It often results from ripple current produced by poorly filtered power supplies or incompatible phase-cut dimmers. These fluctuations, though sometimes invisible, can create temporal light artifacts that contribute to headaches, visual fatigue, or stroboscopic effects.

To mitigate flicker, you should choose LED drivers designed for low ripple, preferably below 10%. Advanced solutions include constant current reduction (CCR) or pulse-width modulation (PWM) at frequencies above 2 kHz, both of which minimize perceptible flicker. Always verify that your dimmers are rated for LED compatibility, as mismatched controls amplify flicker and degrade performance.

Where are the Applications of LED Lighting?

You will find LED lighting applied almost everywhere today, from homes and offices to warehouses, hotels, and public infrastructure. Because of their high energy efficiency, long life, and low maintenance costs, LED lighting products have largely replaced traditional incandescent bulbs, compact fluorescent lamps, and even many fluorescent lighting systems. Light emitting diode technology provides superior light output while consuming less electricity and generating very little heat.

In addition to general LED lighting applications, LEDs offer flexibility across many lighting types. Whether you need directional light sources for workspaces or ambient illumination for large areas, LED light sources adapt to diverse settings. Their ability to emit light in only one direction, combined with efficient thermal management, makes them ideal for both indoor and outdoor environments.

Residential

At home, LED lighting brings you a combination of ambiance, comfort, and significant energy savings. Unlike incandescent lamps, which waste much of their electrical energy as heat, LED bulbs convert electricity directly into visible light with minimal losses. You benefit from more lumens per watt, meaning brighter spaces while consuming less electricity.

Whether you are illuminating kitchens, bedrooms, or living areas, LED light bulbs offer a wide range of color temperatures, from warm to neutral white, allowing you to create the exact mood you want. Their long life and low maintenance needs make them ideal for locations with frequent switching, such as bathrooms or entryways. Because LEDs emit very little heat, you also reduce cooling loads, contributing to additional energy savings and comfort throughout your home.

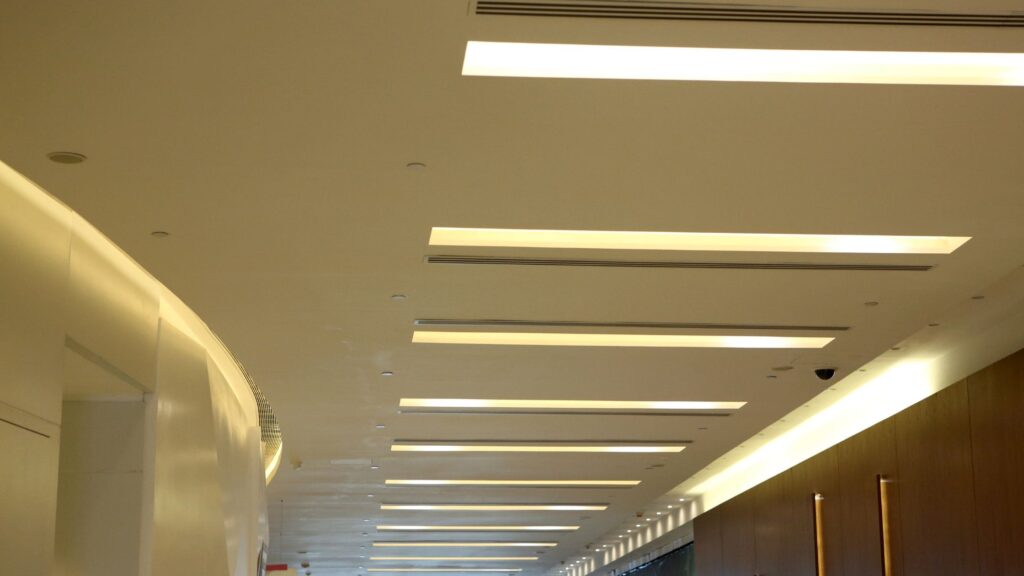

Commercial

In commercial environments, LED lighting plays a vital role in both function and appearance. You see it extensively in marketplaces, hotels, hospitality venues, and major shopping centers. The versatility of LED light sources allows you to illuminate large retail spaces while controlling light distribution and minimizing energy costs. High power LEDs combined with precision optics deliver uniform lighting that enhances product displays and customer experiences.

Hotels and hospitality businesses rely on LED lamps for ambient, task, and accent lighting. The ability to produce white light with excellent color rendering index ensures that room furnishings and décor appear vibrant and inviting. LED drivers enable dimming and control options, letting you adjust light levels for various times of day or specific events.

For shopping centers, LEDs reduce maintenance costs due to their long useful life, minimizing disruptions in busy retail settings. Unlike incandescent and CFL bulbs, LEDs emit light in a specific direction, maximizing efficiency while maintaining consistent light quality throughout large commercial spaces. \

Industrial

You see LED lighting widely used in warehouses, distribution centers, manufacturing plants, and logistics hubs. Unlike incandescent bulbs or fluorescent lamps, LED light sources offer high power output, directional light distribution, and substantial energy savings. This is critical for facilities where continuous operation demands both reliability and low maintenance costs.

High bay and low bay fixtures, equipped with multiple LED chips, deliver bright, uniform illumination across large areas. Their solid-state lighting design ensures durability, even in challenging industrial spaces with vibrations, dust, or moisture. Unlike traditional incandescent lamps, LEDs emit very little heat, reducing cooling loads and supporting better thermal management.

You benefit from long useful life, typically exceeding 50,000 hours, minimizing disruptions from frequent switching or lamp failures. As LED technology advances, smart controls and dimming capabilities allow you to fine-tune light output, optimizing both safety and productivity while using less electricity.

Outdoor and Street Lighting

LED lighting has transformed outdoor and street lighting by combining durability, energy efficiency, and superior visibility. You often encounter LED fixtures illuminating roadways, parking lots, building exteriors, and public spaces. Their ability to emit light in only one direction minimizes light pollution while improving safety for both drivers and pedestrians.

LED lamps offer weather resistance and longevity unmatched by incandescent light or compact fluorescent options. Advanced thermal management and heat sink designs enable consistent performance in extreme temperatures. Because LEDs produce very little heat and require less electricity, municipalities and facility managers see significant energy savings and reduced maintenance costs over time.

Automotive and Transportation

In the transportation sector, LED lighting delivers precise control and rapid response, making it ideal for vehicle applications. You see light emitting diode systems used in brake lights, turn indicators, and headlights across modern cars, trucks, and buses. Unlike incandescent bulbs, LEDs illuminate instantly, improving safety during braking or signaling.

Their compact size allows manufacturers to design sleeker headlight assemblies with advanced optics, producing white light that enhances nighttime visibility. LED chips used in automotive lighting also resist vibration and temperature fluctuations, extending their useful life under tough driving conditions.

Sports and Stadium Lighting

In large venues like stadiums and sports arenas, LED lighting delivers both high-lumen output and exceptional energy savings. You rely on these powerful light emitting diode systems to produce intense, uniform light across vast fields without the heat or inefficiency of traditional incandescent bulbs or metal halide lamps.

Unlike incandescent light bulbs that scatter light in multiple directions, LEDs emit light in a specific direction, enhancing light distribution and minimizing wasted energy. The multiple LED chips inside high power LEDs generate the necessary brightness while maintaining consistent color rendering, ensuring clear visibility for players and spectators.

Because LEDs produce very little heat and require less electricity, you gain significant energy efficiency benefits and lower maintenance costs. Their solid state lighting design also withstands frequent switching during events without degrading light quality.

What are the Common LED Lighting Accessories and Controls?

Dimmers allow you to adjust the light output precisely, enhancing both mood and energy savings in various lighting applications. Motion sensors automatically activate the light emitting diode fixtures only when needed, further reducing electricity consumption.

You also have advanced controllers that integrate with smart systems, allowing remote access via Wi-Fi or Bluetooth for real-time adjustments. Diffusers manage light distribution, softening glare while maintaining visible light consistency. Durable housings protect LED light sources from environmental factors, ensuring long life even in challenging conditions.

How Much Energy Can You Save by Converting to LED Lighting?

You can typically save 50% to 80% on energy consumption when you switch to LED lighting compared to traditional light bulbs. Unlike incandescent lamps and compact fluorescent (CFL) bulbs, LEDs emit light much more efficiently, converting most of the electrical energy directly into visible light with very little heat.

For example, replacing 60-watt incandescent light bulbs with 10-watt LED light bulbs yields immediate savings. In large facilities like warehouses or shopping centers, upgrading fluorescent lighting to high power LEDs with optimized heat sinks and solid state lighting design results in dramatic reductions in power usage while improving light quality.

Because LEDs produce white light using multiple LED chips and phosphor conversion, you maintain excellent color rendering and brightness across general lighting applications. The energy efficiency not only lowers your electricity costs but also cuts down on maintenance costs due to the long life of LED lighting products.

Why Is Thermal Management Important for LEDs?

Heat is one of the primary factors that can limit the performance and life of LED lighting. Unlike incandescent bulbs, where heat is part of the light emitting process, LEDs produce light through solid state lighting, where excess heat must be carefully managed. If not, thermal droop occurs, a phenomenon where the light output drops as temperature rises.

For every 10 °C increase in junction temperature, the lifetime of a light emitting diode can be cut in half. This directly affects the long life advantage you expect from LED technology. Efficient thermal management ensures stable light output, prevents color shift, and maintains overall efficiency. By controlling heat dissipation, you preserve the electrical properties of the semiconductor device, optimize light distribution, and protect the led chips from premature degradation.

Heat Sinks and Materials

Effective heat sinks are essential to control the heat produced by LED lighting products. You’ll often find aluminum being used due to its excellent thermal conductivity and lightweight properties. This material efficiently transfers heat away from the led chips to the surrounding air.

Some designs use extruded, stamped, or cast aluminum forms, each selected based on the specific lighting application and required thermal management. In more demanding environments, heat sinks may integrate advanced materials or active cooling mechanisms. A properly designed heat sink ensures that the electrical current passes through the LED safely, without raising temperatures that can compromise performance.

Thermal Droop and System Failure

Thermal droop directly impacts the light output and longevity of your led lamps. As heat builds up, the light emitting diode emits less visible light for the same electrical current, reducing luminous efficacy. Over time, this leads to dimmer illumination and possible color shift due to unstable phosphor conversion.

Excessive heat also stresses the phosphor coating, circuit board, and driver components. Without adequate thermal management, the LEDs fail to maintain high efficiency and may suffer early system failure. Manufacturers address this by designing heat sinks and circuits that dissipate heat efficiently, keeping the temperature rise within safe limits to ensure you get consistent, high-quality light output throughout the LED’s useful life.

How is Light Quality and Optical Control Managed in LEDs?

One of the defining strengths of LED lighting is its precise control over light output and distribution. Unlike incandescent bulbs that emit light in all directions, LEDs produce light in only one direction. This directional property allows you to shape the beam more efficiently using optical components.

Lenses, reflectors, and diffusers are essential to manipulate the way LEDs emit light. These optical devices help distribute visible light evenly, minimize glare, and enhance light quality in various lighting applications. The compact size of multiple led chips gives designers flexibility to engineer custom optics that deliver high efficiency and uniform illumination. By managing optics, you ensure the led lighting products maintain superior performance for both general lighting applications and more specialized uses.

Optics and Beam Control

The optics used in LED lamps play a vital role in controlling how light is projected. Primary lenses sit directly over the led chips, focusing or spreading the light as needed. Secondary optics, such as reflectors, redirect light output to achieve wider beam angles or tighter focus, depending on the application.

For example, narrow beam optics are useful in accent lighting or spotlighting, while wide beam optics support general area lighting. Beam control technologies optimize light distribution without wasting electrical energy, unlike incandescent lamps that lose energy as heat.

Glare and Diffusion Techniques

Managing glare is essential for visual comfort, especially in indoor lighting environments. Diffusers made from frosted acrylic or polycarbonate spread the emitted light evenly, softening harsh edges and eliminating bright spots. This reduces visual fatigue, particularly in workspaces and retail areas.

Anti-glare baffles and micro-prismatic lenses are also used to control brightness while preserving light quality. These techniques allow you to maintain high lumen output while improving safety and comfort.

What are the Safety and Regulatory Standards for LED Lighting?

When you install LED lighting, safety and compliance must be your priority. Multiple global and regional standards regulate LED lighting products to ensure user protection and performance reliability. Certifications such as UL (Underwriters Laboratories) in the US and CE in Europe confirm electrical safety. Environmental regulations like RoHS limit hazardous substances, while WEEE governs recycling and disposal.

Utility codes often require a power factor above 0.9 for devices over 25 watts and total harmonic distortion (THD) under 20%, protecting electrical grids from instability. Proper led drivers must ensure galvanic isolation, especially in isolated driver designs, preventing current leakage and enhancing user safety. Non-isolated drivers lack this separation and may pose risks if improperly installed. Additionally, managing thermal management through proper heat sink design helps maintain light output and protects the semiconductor device from overheating.

How Much Does LED Lighting Cost?

Small led light bulbs for home use, such as A19 replacements for incandescent bulbs, typically range from $3 to $10 per unit. These offer immediate energy savings of up to 80% compared to incandescent light bulbs, while delivering longer useful life and lower maintenance costs.

In mid-sized commercial projects, such as offices or retail stores, led panels, downlights, and strip lights can cost between $30 and $150 per fixture. These systems replace fluorescent lamps and compact fluorescent fixtures, providing better light quality, color rendering, and significant energy efficiency.

Large industrial installations involve high power leds like UFO high bays or linear fixtures. Here, you might invest $200 to $600 per fixture, depending on lumen output, optics, and led drivers. These systems replace traditional light sources like metal halide or fluorescent lighting, cutting energy use by 60% to 70%. Additionally, advanced features like dimming, motion sensors, and smart controls can add to the initial cost but maximize energy savings and extend fixture lifetime.

How Long Does LED Lighting Last?

LED lighting typically lasts between 25,000 and 100,000 hours, depending on the product and application. This far exceeds the lifespan of traditional incandescent bulbs or compact fluorescent lamps. When you install a quality led light bulb, you benefit from its long life, reduced maintenance costs, and stable light output over many years. The solid state lighting design allows leds to emit light with minimal degradation compared to incandescent lamps that burn out or fluorescent lamps that fail prematurely. Even under frequent switching, leds maintain performance due to their robust semiconductor device structure, efficient heat sink designs, and advanced thermal management systems.

Does LED Lighting Require Maintenance?

Yes. Although led lighting offers long life and low maintenance compared to incandescent light bulbs and fluorescent lamps, proper care still extends its useful life. You should regularly inspect your led lighting products for dust accumulation, as buildup on lenses or fixtures can reduce visible light output and affect light quality. Use a soft cloth or compressed air to gently clean the surface and maintain optimal light distribution.

Pay close attention to thermal management. Heat sinks play a vital role in dissipating heat. If ventilation is blocked or airflow restricted, excessive heat may cause thermal droop, leading to lumen loss and shorter life. Ensure that the fixtures remain unobstructed and allow for proper heat dissipation.

Check led drivers periodically. Over time, power supply components may degrade, causing flicker or uneven light emission. Replacing faulty drivers maintains consistent performance. Using quality drivers with forward voltage matching also reduces electrical stress on the led chips, enhancing overall durability.

In outdoor or industrial settings, verify that seals and housings remain intact to prevent moisture ingress, which can damage circuit boards or electrical properties. Additionally, when retrofitting existing fixtures, always confirm compatibility with your electrical system’s voltage supplied, ensuring safe operation.

How to Design LED Lighting For Your Project?

Designing led lighting for your project starts with understanding your application’s specific lighting needs. First, you should assess the area’s purpose, whether it’s task lighting for workspaces, ambient lighting for living areas, or high power leds for industrial facilities. Determine the required light output in lumens based on room size and function.

Next, select the proper color temperature. Warm white (2700K-3000K) creates cozy ambiance, while neutral white (4000K) works well in offices or retail. For precision tasks, you may require cooler color temperatures above 5000K. Pay attention to the color rendering index, as higher CRI ensures better visibility and color accuracy under artificial light.

Consider fixture types such as led bulbs, downlights, panels, or strip lights depending on your layout. Evaluate beam angles, optics, and dimming capabilities to achieve optimal light distribution. Efficient thermal management through heat sinks protects led chips and maintains performance.

Finally, plan for smart controls, dimmers, or motion sensors to maximize energy savings and adapt illumination to changing needs.

How Has LED Lighting Impacted the Environment?

LED lighting has significantly reduced carbon emissions by lowering energy consumption up to 80% compared to incandescent bulbs and fluorescent lamps. Because leds emit light with higher energy efficiency, you contribute directly to less fossil fuel consumption when you switch. The long life of led light bulbs—often exceeding 50,000 hours—also means fewer replacements and less landfill waste from spent light bulbs and fixtures. Unlike incandescent light bulbs that fail quickly, led lighting products maintain stable light output for years. Additionally, led technology supports dark-sky preservation. By using directional optics and precise light distribution, leds minimize skyglow and light pollution, protecting nocturnal environments. Compared to traditional light sources, leds emit very little uv light, reducing harm to sensitive wildlife. As part of broader ESG goals, led lighting offers measurable environmental benefits for both individuals and organizations.

How to Choose a LED Lighting Partner and Provider?

Start by confirming the provider’s technical expertise in led technology and solid state lighting. Experienced manufacturers understand how multiple led chips, phosphor materials, and circuit boards work together to deliver reliable light output while managing heat sink design and thermal management.

You also want to assess product certifications. Look for providers offering led lighting products that meet energy star, UL, or CE standards. These certifications guarantee safety, efficiency, and regulatory compliance. A reputable partner should fully comply with environmental regulations like RoHS and WEEE, ensuring restricted substances and proper recycling practices.

Pay attention to product range and customization capabilities. You may need specific lighting types—such as high power leds for industrial applications or color rendering index requirements for retail displays. Reliable providers offer a full portfolio of lighting applications, from residential to commercial and industrial.

Examine after-sales support and warranty terms. Good partners provide strong technical support, access to spare led drivers or power supply components, and clear maintenance guidelines to extend useful life and prevent premature failures.

Finally, evaluate pricing transparency. The lowest initial cost isn’t always best if quality and longevity are compromised. Trusted providers balance affordability with long-term performance, energy savings, and minimal maintenance costs.

How Do LEDs Compare to Emerging Lighting Technologies?

While LED lighting remains dominant, newer technologies like OLED and laser lighting are emerging. LEDs offer superior energy efficiency, converting more electrical energy into visible light with less electricity wasted as heat. Solid state lighting enables compact designs with long life and reliable thermal management.

OLEDs produce light across flat, flexible panels using organic materials. They deliver uniform, diffused light with excellent color quality but lower luminous efficacy and shorter useful life compared to leds. OLEDs excel in decorative and specialty lighting where flexibility and aesthetics matter.

Laser lighting, still niche, offers high intensity and focused beams for specific applications like automotive headlights or projection systems. Although lasers achieve very high brightness, their complexity and cost make them less viable for general lighting applications.

Conclusion

When you think about it, LED lighting has completely changed the way we light up our world. Whether you’re brightening your home, lighting a warehouse, or creating the perfect vibe for your business, LEDs give you more light while using far less energy than old incandescent or fluorescent lamps. We get the benefit of bright, clear light that lasts for years, without the extra heat or high electric bills. And because LEDs shine in one direction, we’re not wasting light where we don’t need it, which even helps protect the night sky. From powerful industrial fixtures to colorful accent lights, LEDs offer flexibility for nearly every space.

As long as you choose quality components, good thermal management, efficient LED drivers, and reliable circuit boards, you can count on safe, long-lasting, and energy-saving performance for years to come.

Frequently Asked Questions

Can I use LED bulbs in any fixture?

Not exactly. While it’s true that many led light bulbs are designed to fit existing fixtures, you still have to check for compatibility. Some fixtures designed for incandescent or compact fluorescent bulbs may not accommodate the heat sink size or require specific led drivers. Enclosed fixtures may restrict airflow, affecting thermal management and longevity. Always verify wattage limits, dimmer compatibility, and voltage requirements to ensure safe, efficient performance.

What Does “Integrated LED” Mean?

Integrated LED means that the light emitting diode components are built directly into the fixture rather than using separate light bulbs. In these designs, multiple LED chips are mounted onto a circuit board inside the lighting product. Unlike traditional incandescent bulbs or even compact fluorescent lamps, you cannot replace an integrated LED bulb separately. Instead, the entire fixture functions as one complete unit. This allows better thermal management, often incorporating heat sinks to improve energy efficiency and extend useful life.

Are LEDs Dimmable?

Yes, many LED lighting products are dimmable, but it depends on both the LED driver and the dimmer switch. Unlike incandescent light bulbs, which dim simply by reducing voltage, LED light bulbs require compatible dimmers that work with their solid state lighting technology. Some older dimmers designed for incandescent lamps may cause flickering or limited dimming range with LEDs. You should always check for dimmer compatibility when purchasing led lighting products. High quality LED drivers with proper electrical current control enable smooth dimming without compromising light quality or causing color shift.

What is the CRI in simple terms?

The Color Rendering Index (CRI) measures how accurately a light source displays colors compared to natural sunlight. When you use LED lighting, a higher CRI value means objects appear more true to life. Traditional incandescent bulbs usually have high CRI, while some compact fluorescent and early LED lamps struggled with color accuracy. Modern led technology now offers high CRI options that emit light with excellent color rendering. CRI values range from 0 to 100; most high-quality LED light bulbs achieve 80 or higher, providing pleasant and natural-looking illumination for many lighting applications.
